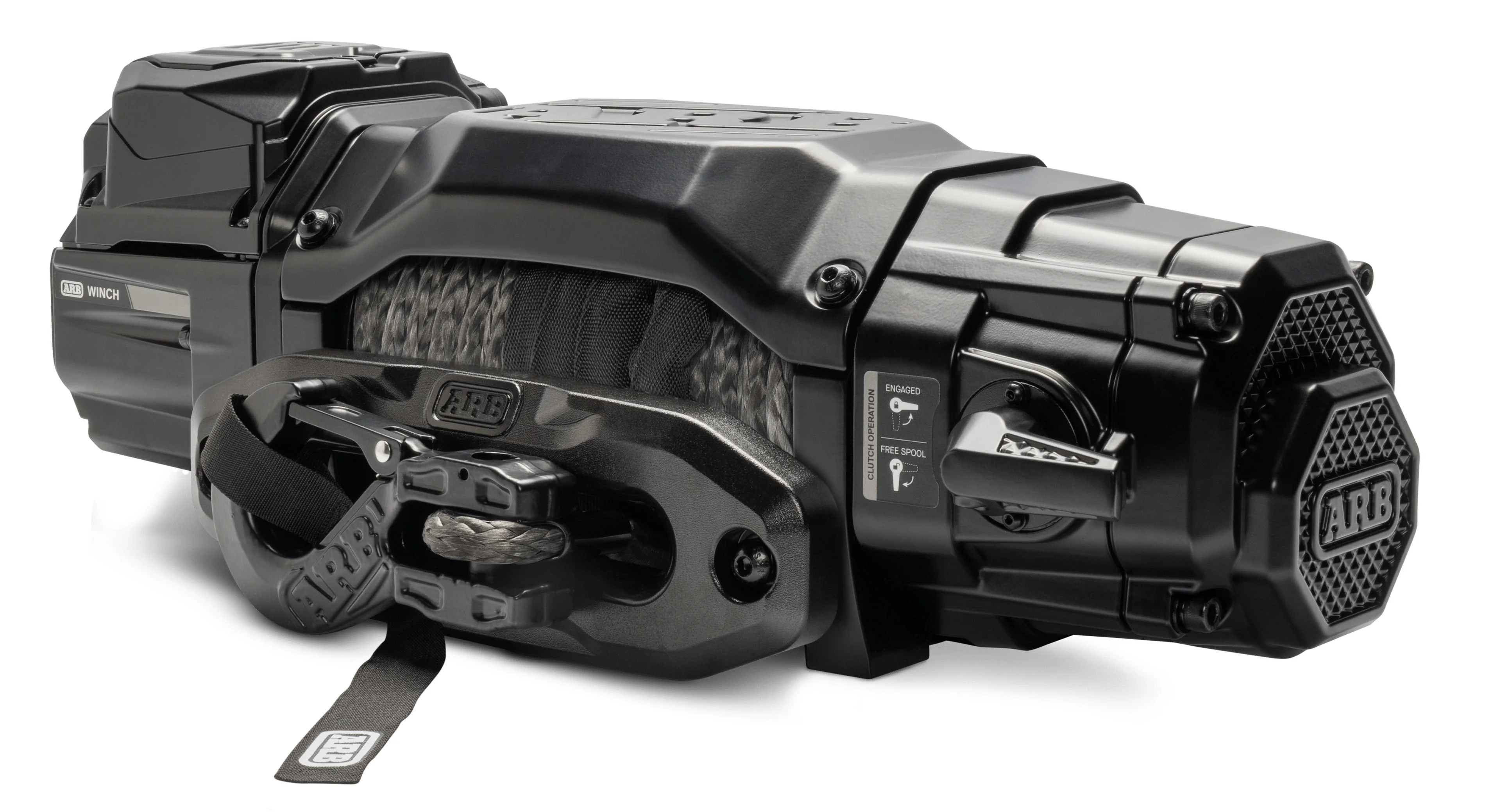

ARB Winch 12,000 lbs (ARW120SA)

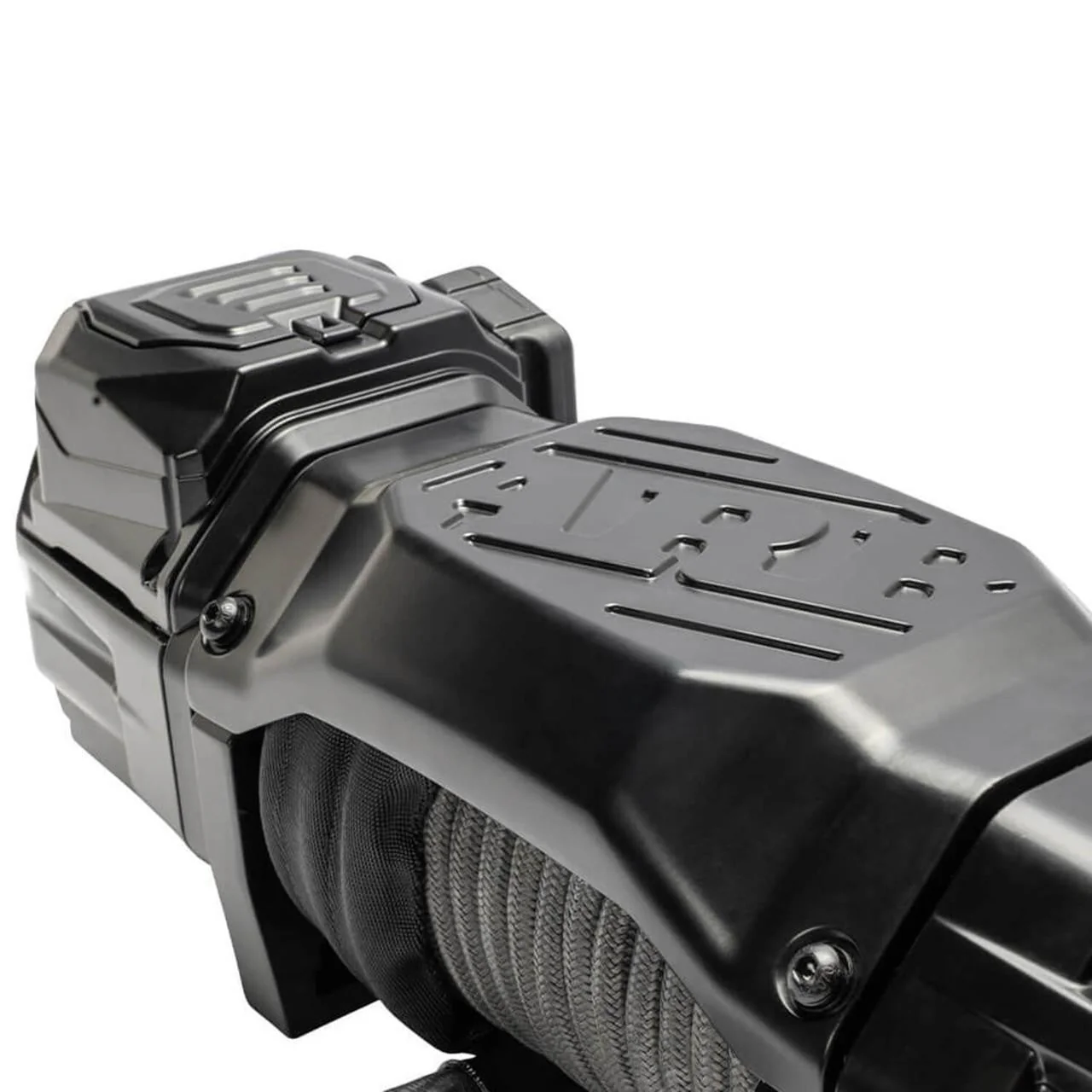

The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors. A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.

Key Features: ARB Winch 12,000 lbs (ARW120SA)

• The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
• A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
• Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
• 4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.
• Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
• Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
• One piece bridging plate offers greater torsional strength.
• Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.

Documents: ARB Winch 12,000 lbs (ARW120SA)

ARB Winch 12,000 lbs (ARW120SA) Installation Guide

ARB Warranty Policy

Specifications: ARB Winch 12,000 lbs (ARW120SA)

Includes Main Power Isolation Switch and Remote Mounted Control Plug

Volts	12V
Max Line Speed	65ft 7.4in / min
Weight	73.85 lbs
Material	Aluminum/steel
Color	Black
Prop 65	Yes
Waterproof Ratings	IP68 Winch Motor and Gearbox
Fairlead	Aircraft Grade Black Aluminum Hawse Fairlead
Rated Line Pull	12,000 lb
Rope	Black Synthetic (13/32 in × 91.9 ft) with Protective Sleeve
Motor	4.3kW (5.7HP)
Electrical Contactor	Albright DC Contactor  500 Amp
Brake	Gearbox Mounted 100% Load Holding Proportional Friction Brake
Gearbox	2-Stage Planetary and 2-Stage Spur
Limited Lifetime Warranty	7-Year Warranty on Electrical Components)
