Dometic CFX5 75DZ Powered Cooler (113-Can, AC/DC)

Need the most rugged, lightweight and efficient portable refrigerator/freezer for your road trips? The Dometic CFX5 75DZ Powered Cooler is a 2.7-cubic-foot (75-liter, 113-can) portable dual-zone refrigerator/freezer that can operate off AC or DC power. The high-tech Dometic CFX3 Series refrigerator/freezers refrigerate or deep-freeze food down to -7°F (-22°C) without the need for ice. The CFX3 powered cooler models are also fitted with heavy-duty features like reinforced corners, stainless steel hinges, and a robust lining to perform in the most extreme conditions.

Key Features: Dometic CFX5 75DZ Powered Cooler (113-Can, AC/DC)

• The CFX5 75 DZ capacity holds up to 113 x 12 oz cans – a large size for weekend adventures, week-long camping trips, and extended nomadic travel.
• Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.

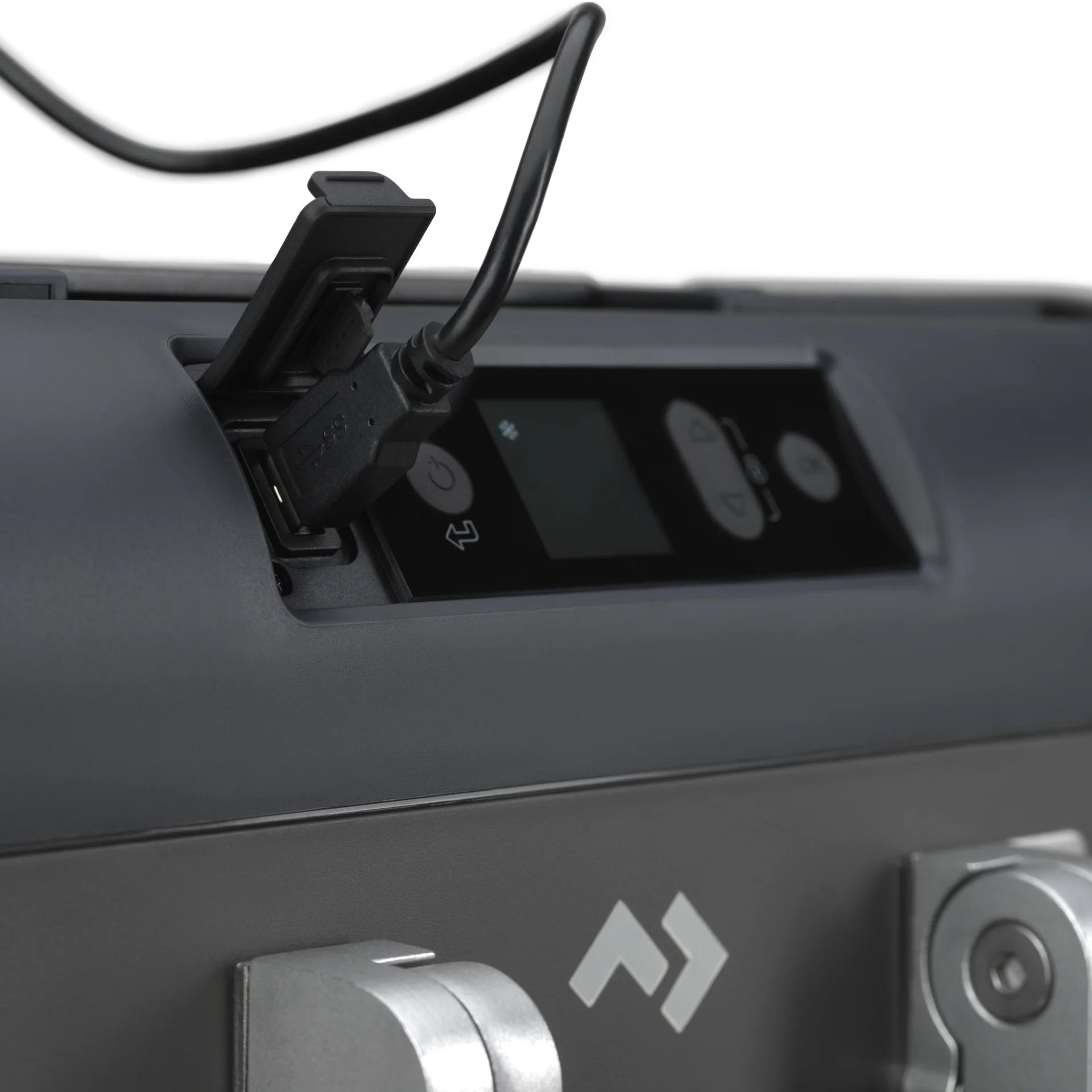

• Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.
• Two cooling zones allow you to bring refrigerated and frozen foods all at once.
• Internal details include a removable wire divider and an interior light.
• External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.
• Five-year limited warranty.

Specifications: Dometic CFX5 75DZ Powered Cooler (113-Can, AC/DC)

General
SKU	97000050757
Model	CFX575DZ
Product Description	75L Dual-Zone Electric Cooler
Scope of Delivery	Cooler, manual, warranty card, AC/DC cables, baskets, bottle opener
Refrigeration Technology	Compressor
Zone Type	Dual Zone
Dimensions
Depth	19.49 in
Height	18.58 in
Width	35.12 in
Net Weight	59.76 lb
Total Volume	75 L
Can Capacity	113 cans
Electrical
Input Voltage (AC)	100–240 V
Input Voltage (DC)	12 / 24 V
Rated Current (AC)	1.11A @100V / 0.47A @240V
Rated Current (DC)	9.7A @12V / 4.4A @24V
Rated Power	61 W
Frequency	50 / 60 Hz
AC Cable Length	6.6 ft
DC Cable Length	4.9 ft
Performance
Refrigerant Type	R1234yf
Refrigerant Amount	46 g
Noise Level	44 dB
Climate Class	N/T
Temperature Range	-22°C to +20°C
Insulation Type	PU (Polyurethane)
Insulation Thickness	50 mm
Properties
USB Port	Yes
Connectivity	Bluetooth / WiFi
Basket	Yes
Interior Light	LED
Drain Plug	Yes
Anti-Condensation Coil	Yes
Mounting Inserts	M6
Color	Slate / Ore
Logistics
Parcel Depth	21.06 in
Parcel Height	20.47 in
Parcel Width	36.81 in
Parcel Weight	68.58 lb

Video: Dometic CFX5 75DZ Powered Cooler (113-Can, AC/DC)

Documents: Dometic CFX3 75DZ Powered Cooler (113-Can, AC/DC)

• Dometic CFX5 Start Up Procedure
• Dometic CFX5 Operating Manual
