Van Compass 2018+ Ford Transit AWD (SRW/DRW) - Stage 1 Topo 2.0 System

Part#
MID TUNE: VCMP-7211-M
HEAVY TUNE: VCMP-7211-H

Improve the ride quality and stance of your 2020-Present Ford Transit AWD with Van Compass 2018+ Ford Transit AWD (SRW/DRW) Stage 1 Topo 2.0 System. It is ideal entry-level system for lighter vans and passenger vans seeking a more aggressive stance, better ride quality, and improved off-road capability. Carefully designed around the unique packaging and front CV shaft constraints of the 2020+ AWD Transit platform, this system delivers a true 2-inch lift without compromising drivability or reliability.

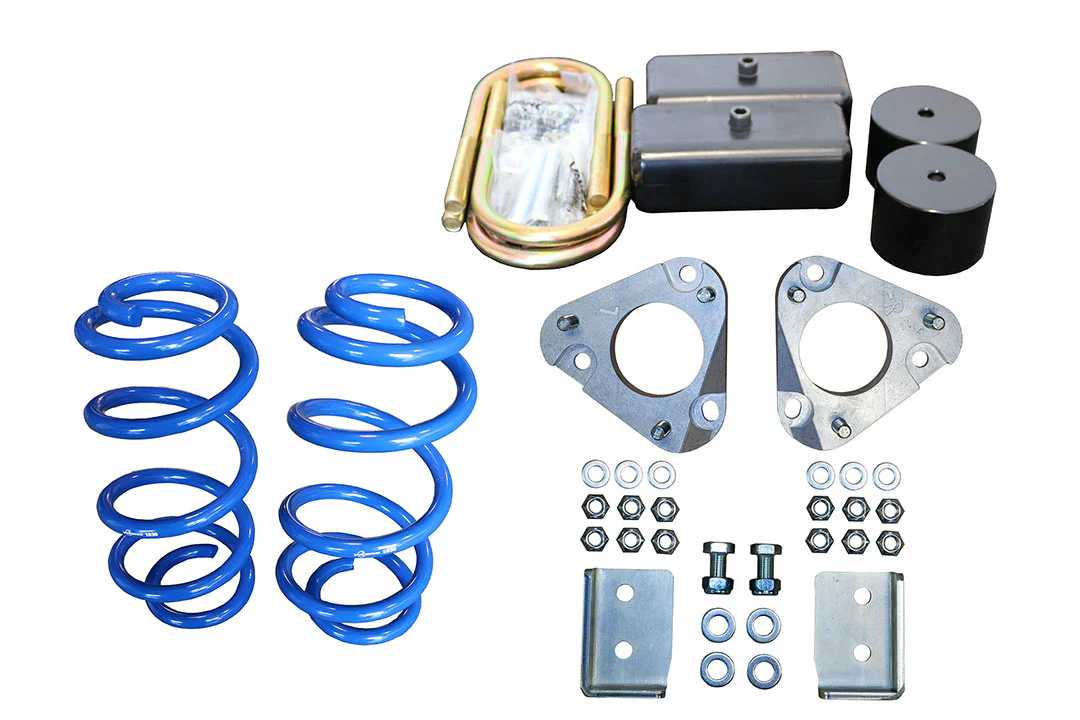

The Stage 1 Topo 2.0 kit includes a precision-engineered 0.75" lift camber correction plate paired with a tuned coil spring. By optimizing the spring length and rate, the system provides an additional 1.25" of lift at the front, improving compression travel and enhancing handling on rough and uneven roads. Rear lift is achieved with a 2" billet aluminum block and bump stop spacers to preserve the correct suspension geometry. Rear shock relocation brackets are also included, allowing trimming of the low-hanging factory mounts for improved clearance under the axle tube.

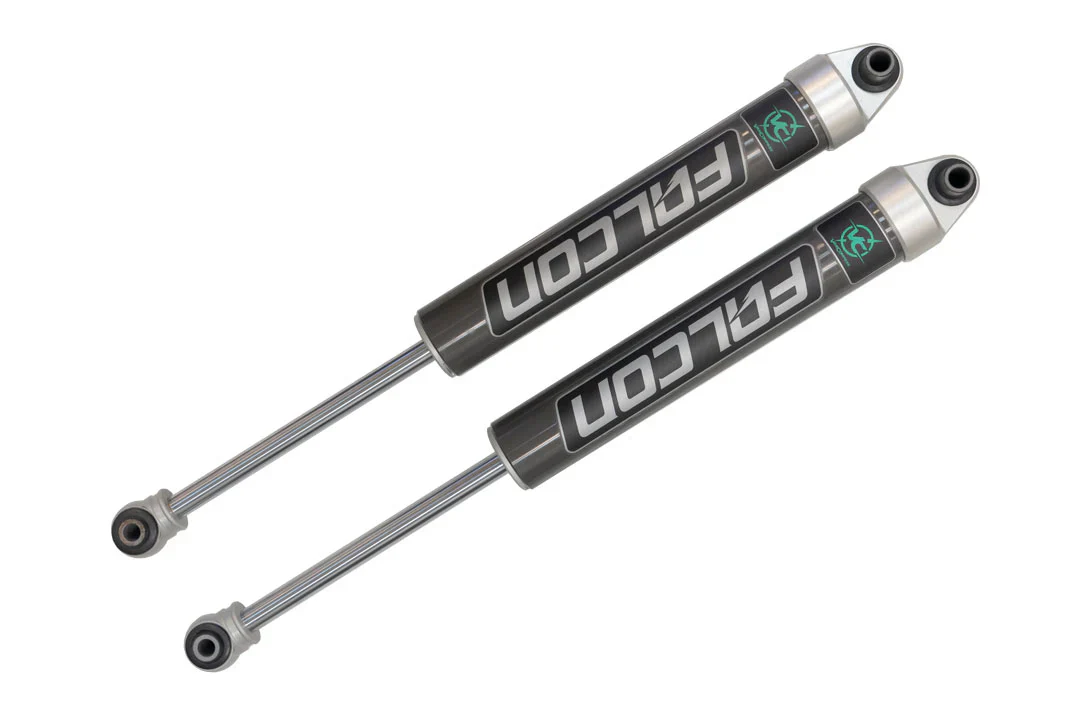

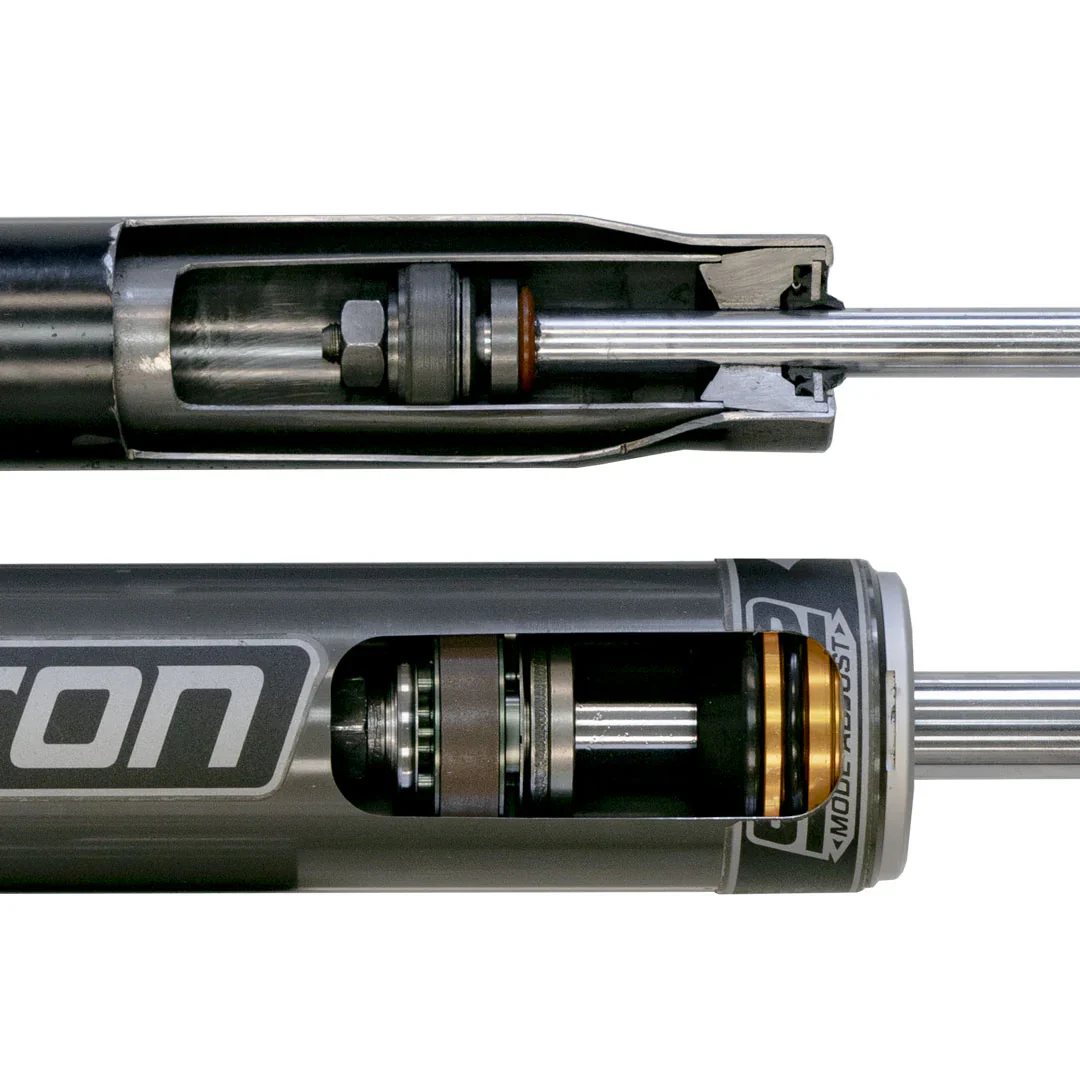

At the core of this system are VC-tuned Falcon 2.1 Monotube Shocks, designed to transform the Transit’s handling dynamics. With superior construction and larger, more effective damper pistons, these shocks dramatically reduce corner lean, minimize violent sway, and absorb jarring impacts, resulting in a smoother, more controlled ride over any terrain.

Key Features: Van Compass 2018+ Ford Transit AWD (SRW/DRW) - Stage 1 Topo 2.0 System

• Fits 2018+ Ford Transit AWD (SRW/DRW)¬†
• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 2.1 Monotube Shocks

• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

What's Included?

• Topo 2.0 Front and Rear Lift Kit
• Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
• High Clearance Rear Shock Brackets

Fitment Guide

MODEL: TRANSIT

YEAR: 2018-PRESENT

DRIVE TYPE: AWD & RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

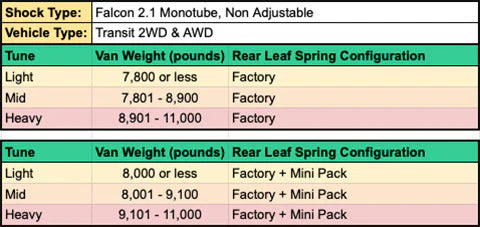

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

NOTE: Bilstein B6 strut not recommended for AWD models.

Documents: Van Compass 2018+ Ford Transit AWD (SRW/DRW) - Stage 1 Topo 2.0 System

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass 2018+ Ford Transit AWD (SRW/DRW) - Stage 1 Topo 2.0 System
