Van Compass 2018+ Ford Transit AWD - Stage 2 Topo 2.0 System (Single Rear Wheel)

PART#
MID TUNE: VCMP-7213-M
HEAVY TUNE: VCMP-7213-H

Improve the ride quality and stance of your 2020-Present Ford Transit AWD with Van Compass 2018+ Ford Transit AWD - Stage 2 Topo 2.0 System (Single Rear Wheel). It is the perfect entry-level system for heavier vans experiencing rear sag and passenger vans looking for a more aggressive stance. Carefully designed around the packaging and front CV shaft constraints of the 2020+ AWD Transit platform, this system delivers a true 2-inch lift while significantly improving handling, ride quality, and ground clearance.

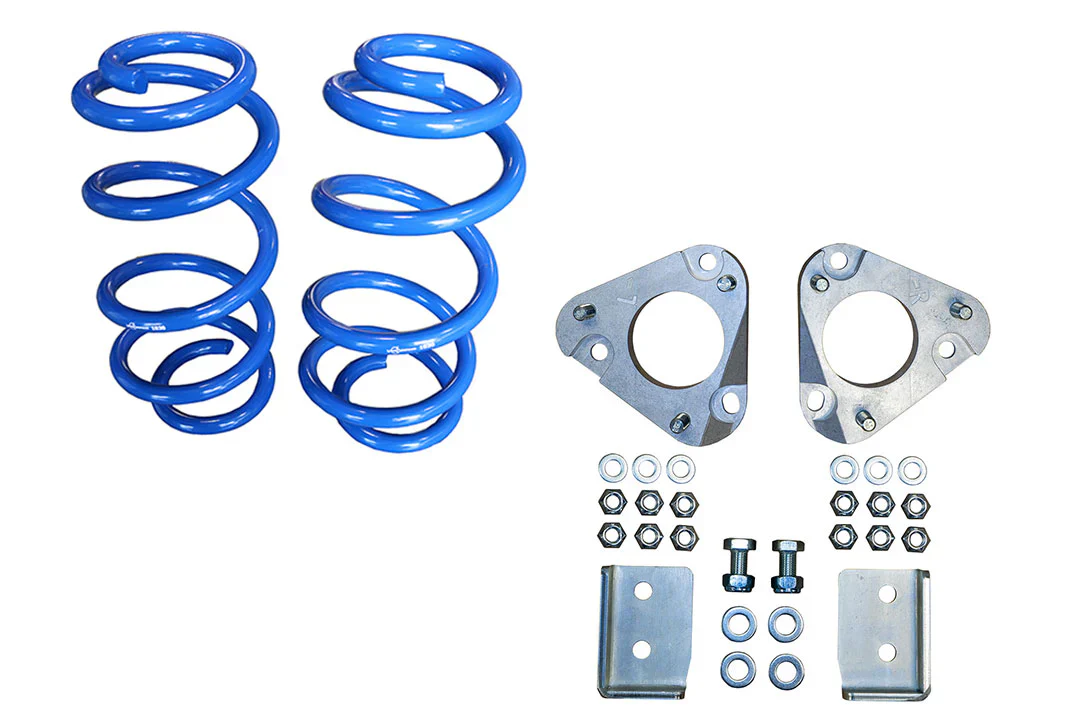

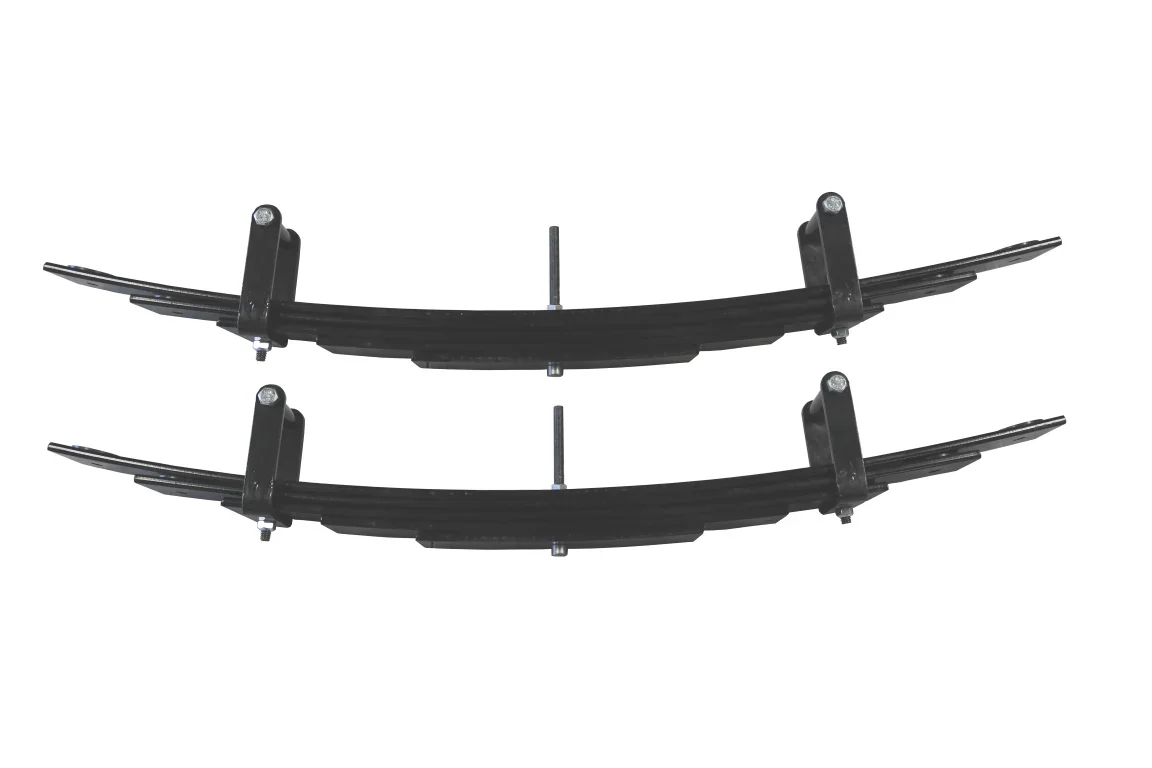

The Stage 3 Topo 2.0 kit includes a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, providing an additional 1.25" of front lift and increased compression travel for better rough-road handling. A 5-leaf mini pack works with the factory rear leaf springs to boost the rear spring rate by 10–15%, lifting the back of the van by 2.0" to 2.5" depending on vehicle weight. Friction-reducing tips on the mini pack ensure smooth and quiet operation even under heavy loads. Rear shock relocation brackets are also included to allow trimming of the low-hanging factory mounts, improving axle tube clearance and overall ground clearance.

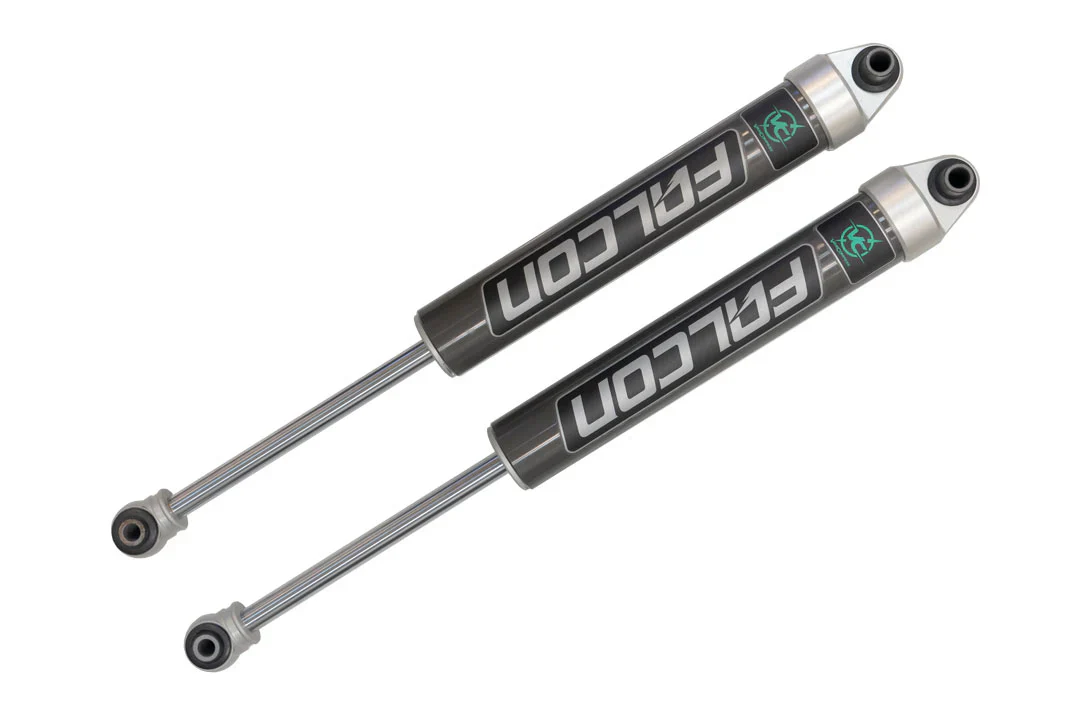

At the core of this system are VC-tuned Falcon 2.1 Monotube Shocks, which feature larger, more effective damper pistons that dramatically reduce corner lean, violent sway, and harsh impacts. These shocks deliver a smoother, more stable driving experience, whether on rough trails or uneven pavement.

(Bilstein B6 strut are not included with AWD systems, their added length can cause CV boot failure)

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Key Features: Van Compass 2018+ Ford Transit AWD/RWD - Stage 2 Topo 2.0 System (Single Rear Wheel)

• Fits 2018+ Ford Transit AWD/RWD Single Rear Wheel vans only¬†
• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 2.1 Monotube Shocks

• Increased rear spring rate fights sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

What's Included?

• Topo 2.0 Front Lift Kit
• Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
• Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
• High Clearance Rear Shock Brackets


Fitment Guide

MODEL: TRANSIT SINGLE REAR WHEEL ONLY

YEAR: 2018-PRESENT

DRIVE TYPE: AWD & RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

NOTE: Bilstein B6 strut not recommended for AWD models.

Documents: Van Compass 2020+ Ford Transit AWD - Stage 2 Topo 2.0 System (Single Rear Wheel)

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass 2020+ Ford Transit AWD - Stage 2 Topo 2.0 System (Single Rear Wheel)
