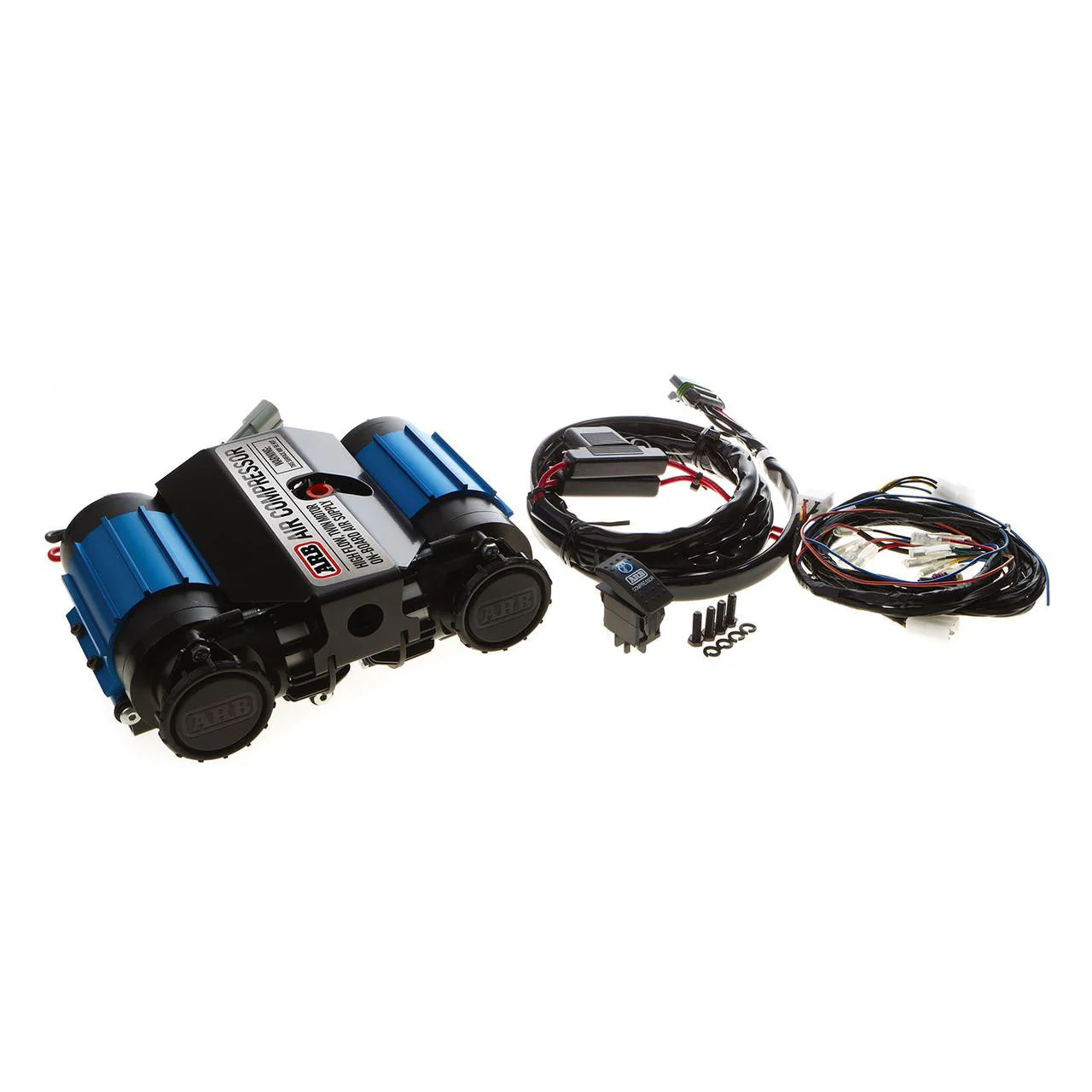

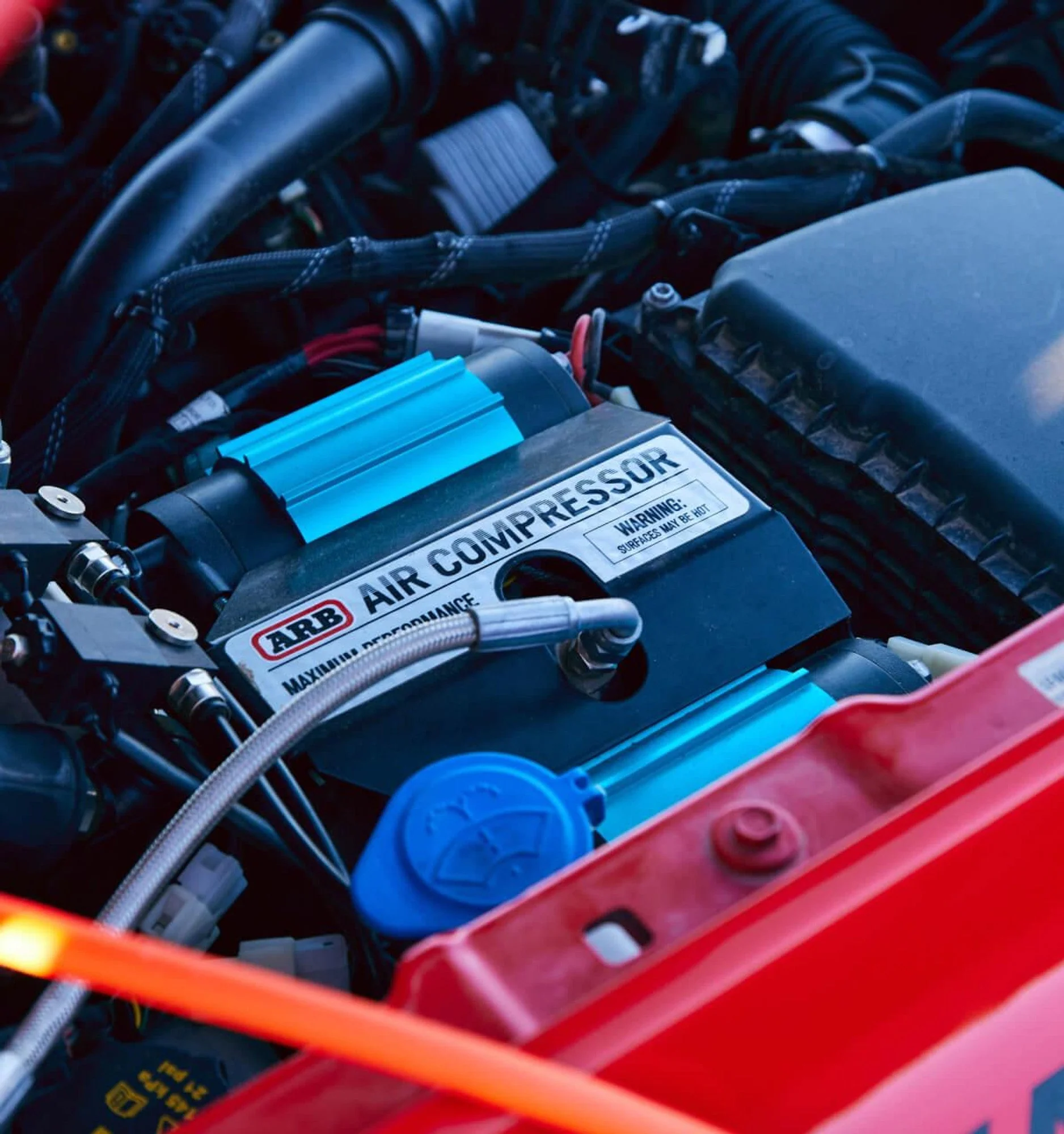

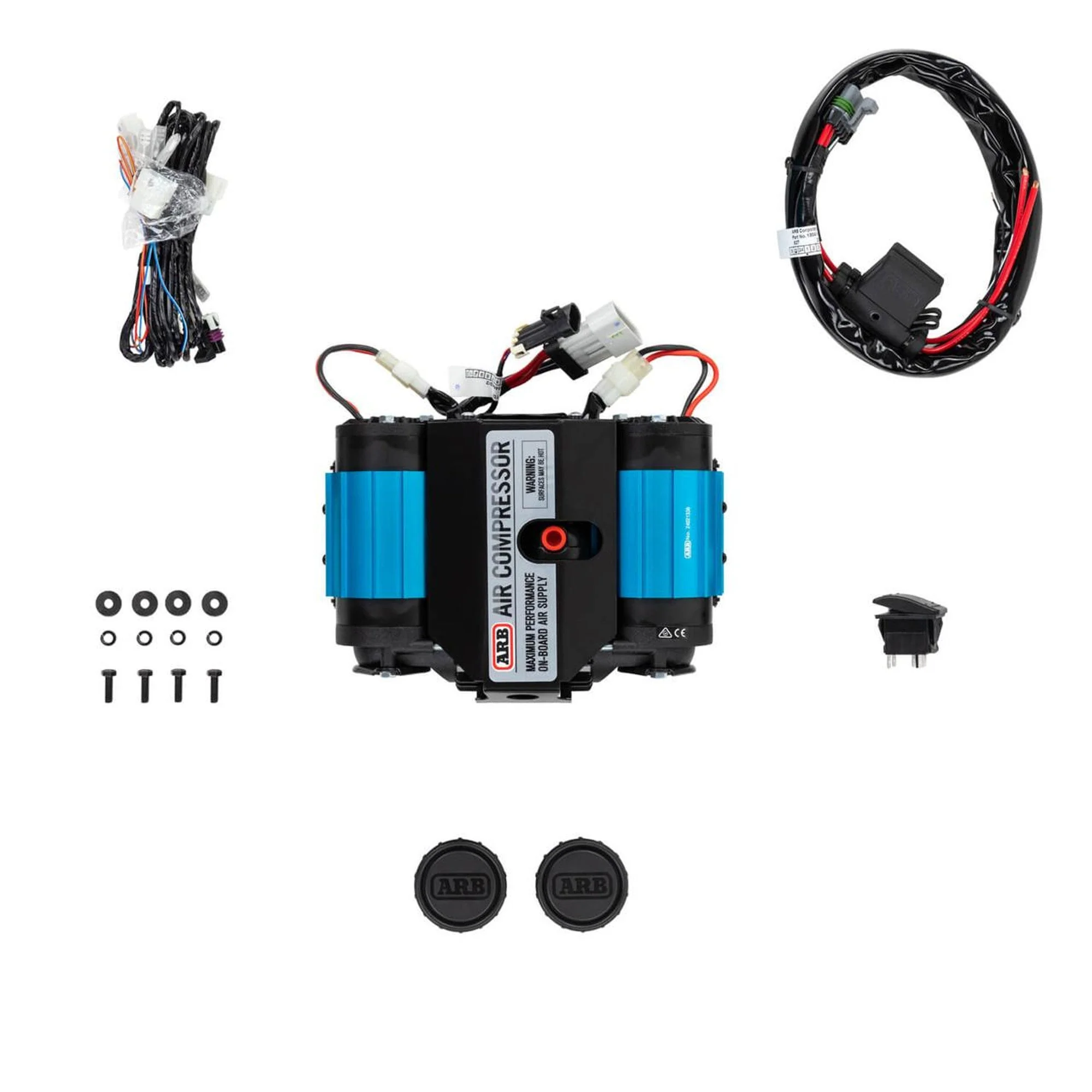

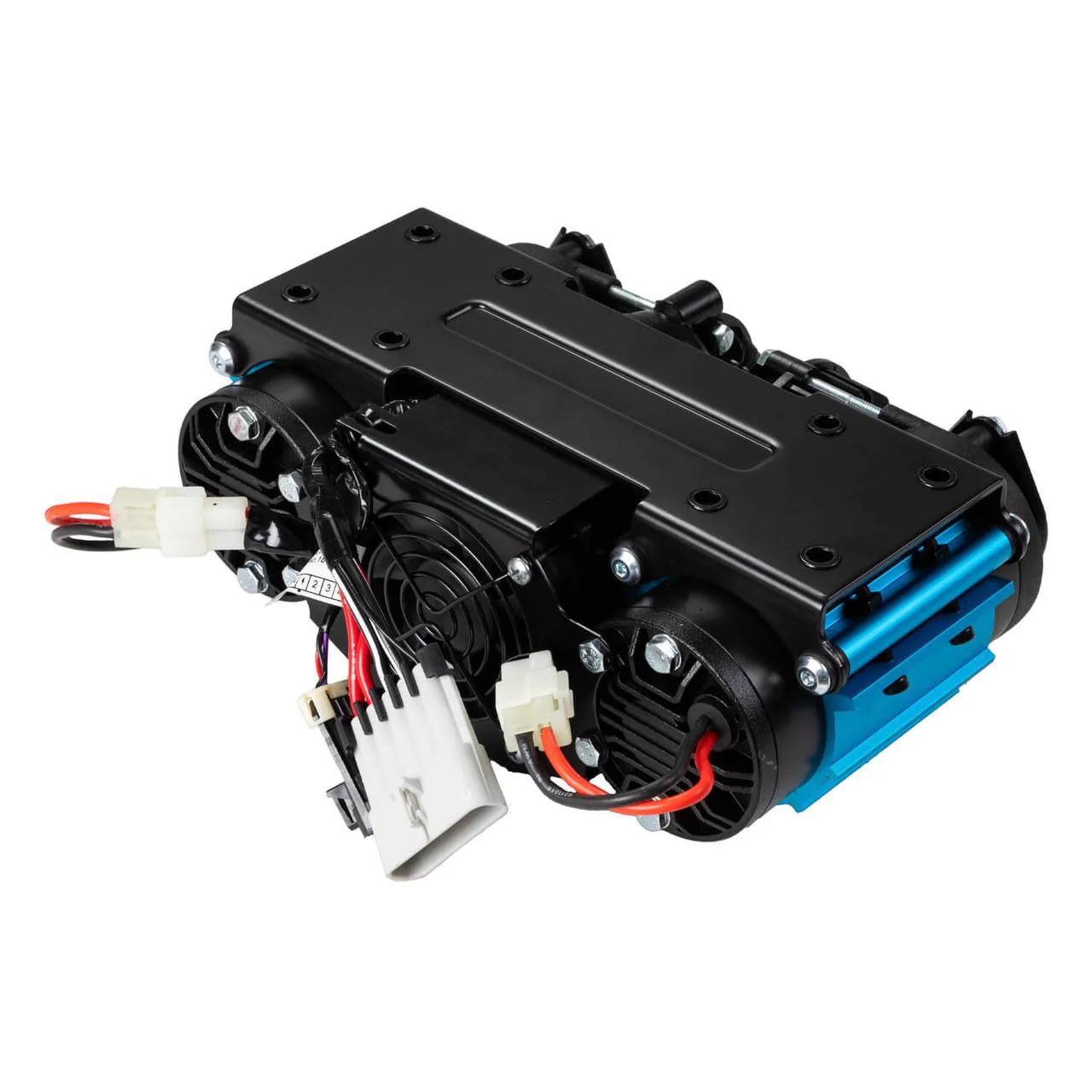

ARB Twin Motor Onboard 12V Air Compressor (CKMTA12)

Typically ships in 5-7 business days. Shipping fees calculated at checkout.

The ARB Twin Motor Onboard 12V Air Compressor (CKMTA12) is designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user.

Key Features: ARB Twin Motor Onboard 12V Air Compressor (CKMTA12)

• Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
• On-board model available in either a 12V or 24V configuration
• Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
• 100% duty cycle
• Sealed for moisture and dust resistance
• Hard anodized cylinder bores for reduced friction
• Teflon impregnated carbon fiber piston seals for maximum trouble free life
• Anodized mounting bracket dissipates heat
• Compatible with Van Compass 2019+ Sprinter Bracket
• Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
• Over-pressure safety valve equipped

Documents: ARB Twin Motor Onboard 12V Air Compressor (CKMTA12)

ARB Twin Motor Onboard 12V Air Compressor (CKMTA12) Installation Guide

Compressor Technical Specifications Chart

Master Compressor Specs Graph

Specifications: ARB Twin Motor Onboard 12V Air Compressor (CKMTA12)

Volts	12V
Width	7.5 inch
Height	4 inch
Length	10.8 inch
Weight	17.4 lb
Prop 65	No
Max Amps	68.6
IP Rating	IP55 Ingress Protection
Duty Cycle	100% 60/0
Max Psi	150
Air Flow 0PSI	6.16 CFM
Air Flow 29PSI	4.68 CFM
Design	Onboard
Warranty	3-Year
