Van Compass 2019+ Mercedes Sprinter Air Compressor Mounting Bracket

Part#
VCMP-4066

Having an on-board air compressor on a vehicle has so many great uses. From airing up bike tires, to air mattresses. Drying off wet items, blowing out dust from the interior or just airing up those big tires on the van after some off-road adventures. The Van Compass Air Compressor Mount makes it easy to bolt your choice of air compressors under the hood of the 2019+ Mercedes Sprinter VS30.

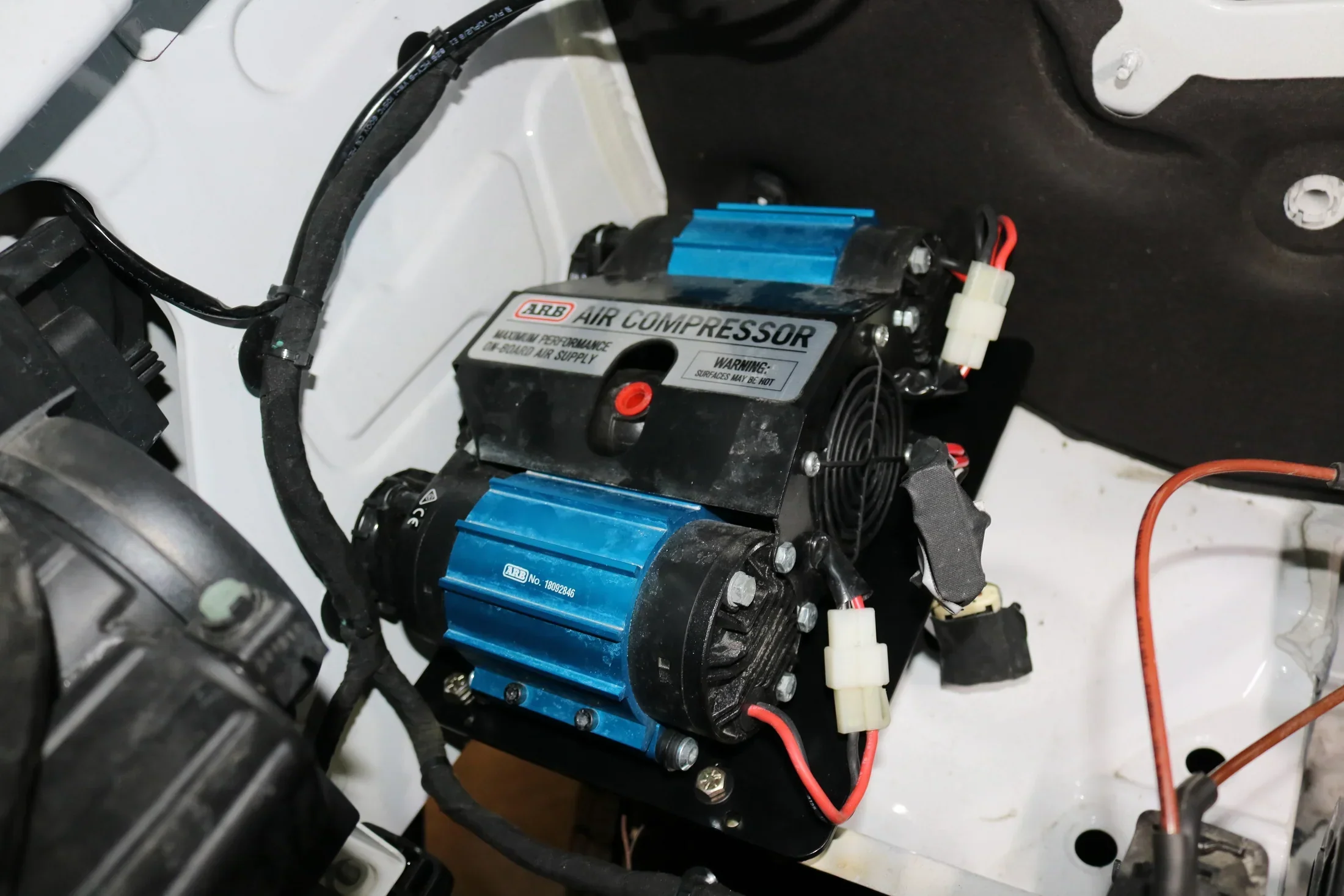

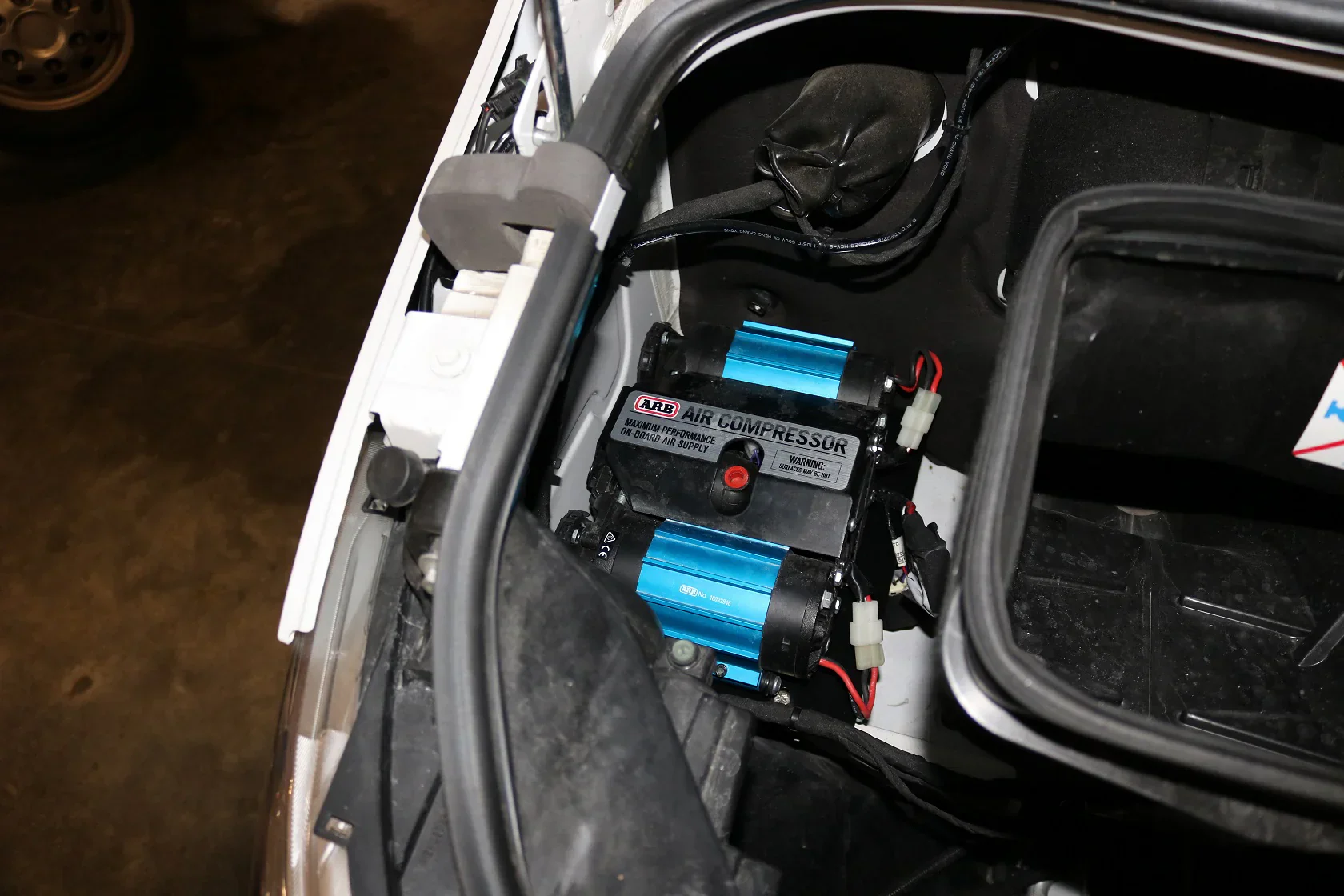

Mounting the air compressor in the engine bay, next to the intake of the cabin air filter ensures that the air compressor will be kept out of the elements and free from road debris, dust, mud, water, snow and caustic de-icing chemicals found in snowy areas.

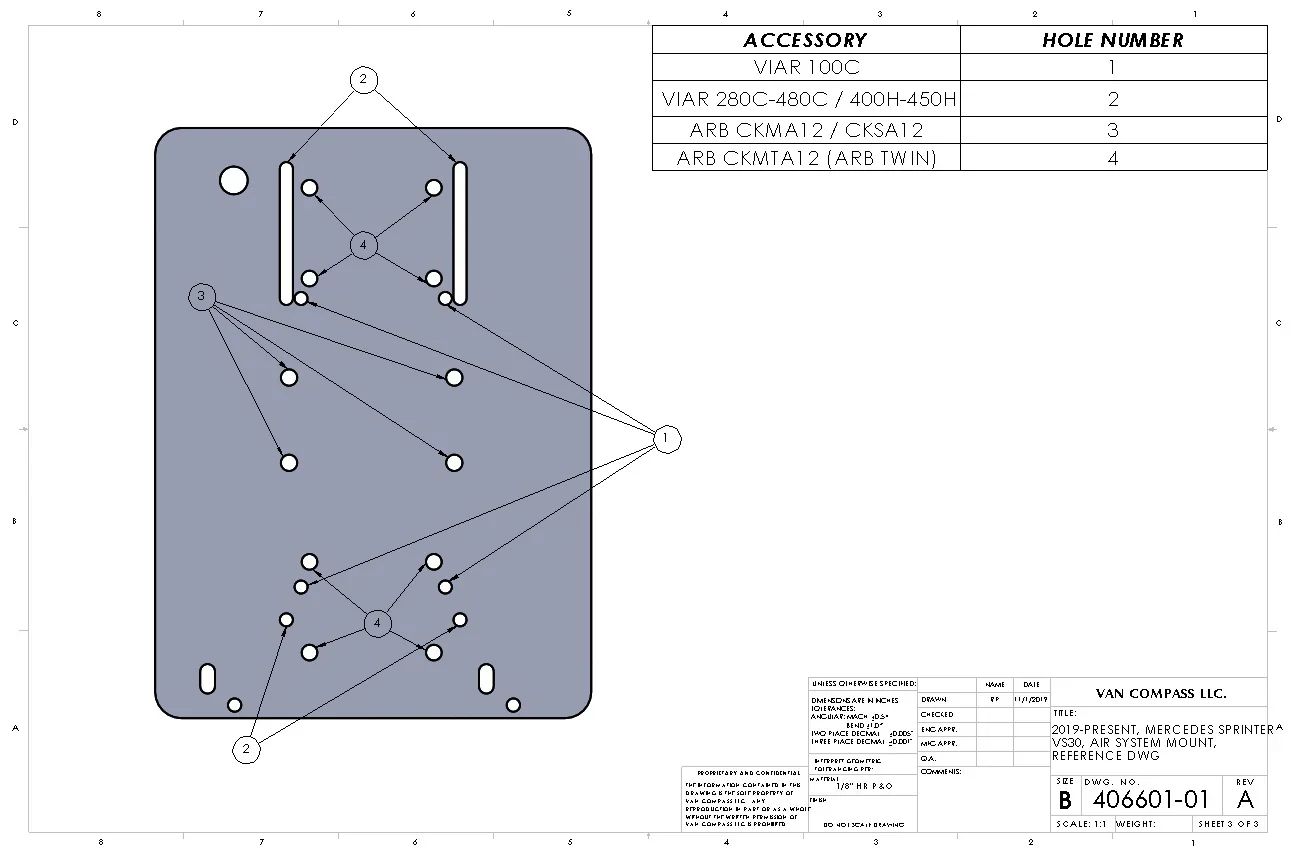

This bracket mounts using existing holes already in the engine bay for a simple drill installation and can be fully installed in under an hour. We designed this bracket to have a bolt pattern for a plethora of different brands and sizes of compressors. Here's a list of all the compressor mounting patterns already designed into the bracket:

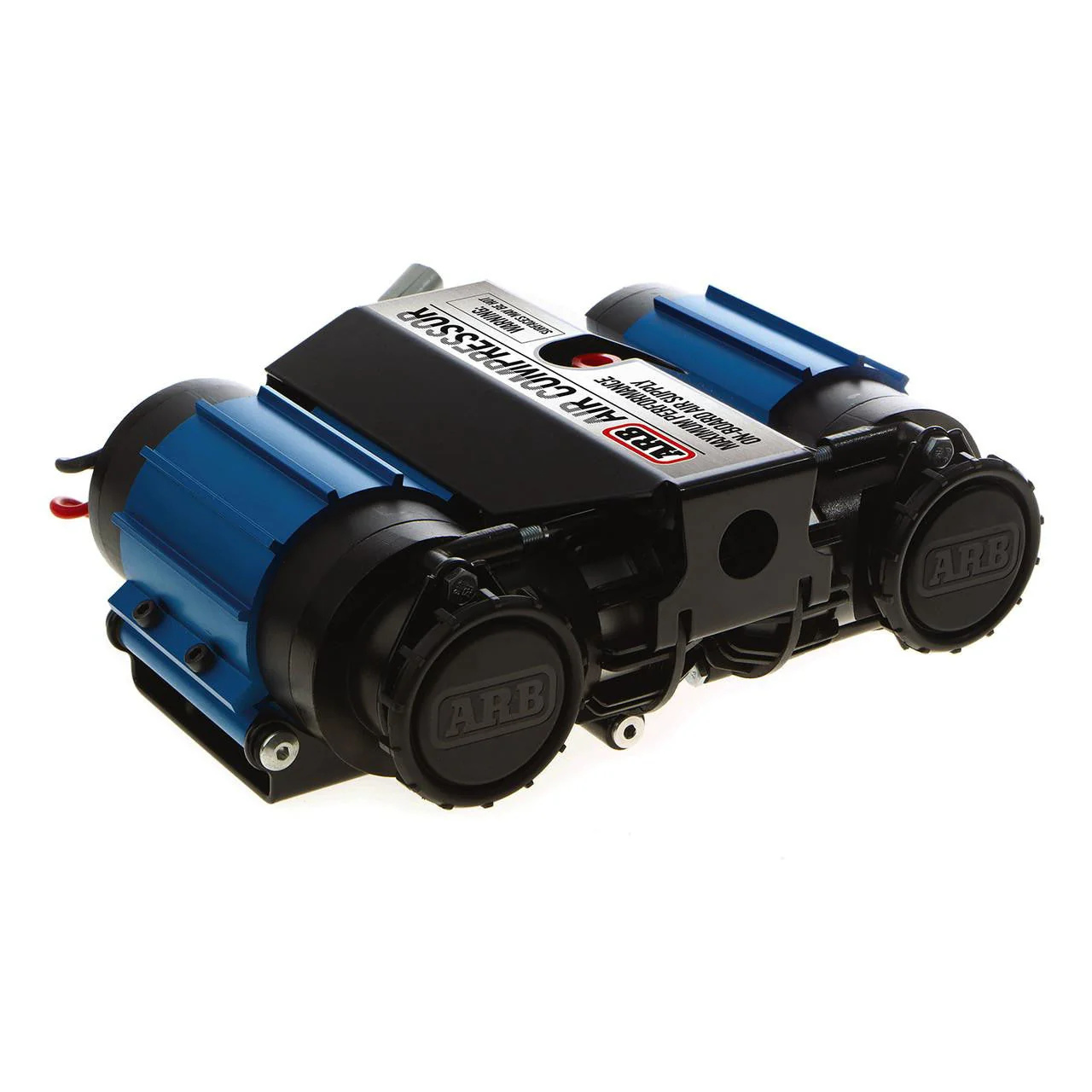

• ARB Twin Air Compressor: CKMTA12
• ARB Single Compressors: CKMA12 or CKSA12
• Viar: 100C, 280C thru 480C, 400H thru 450H

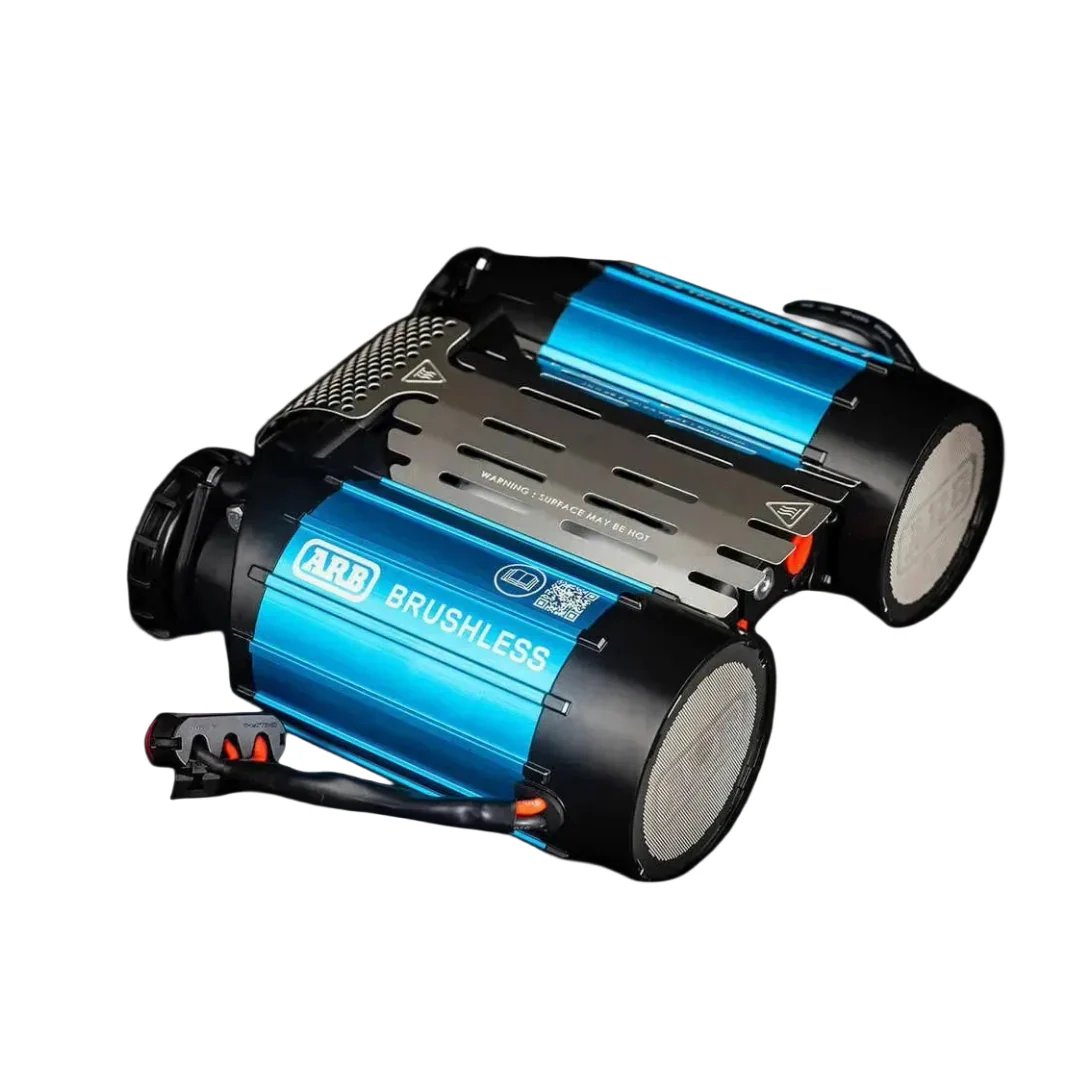

Note: Has not been tested on ARB CKBLTA12 model.

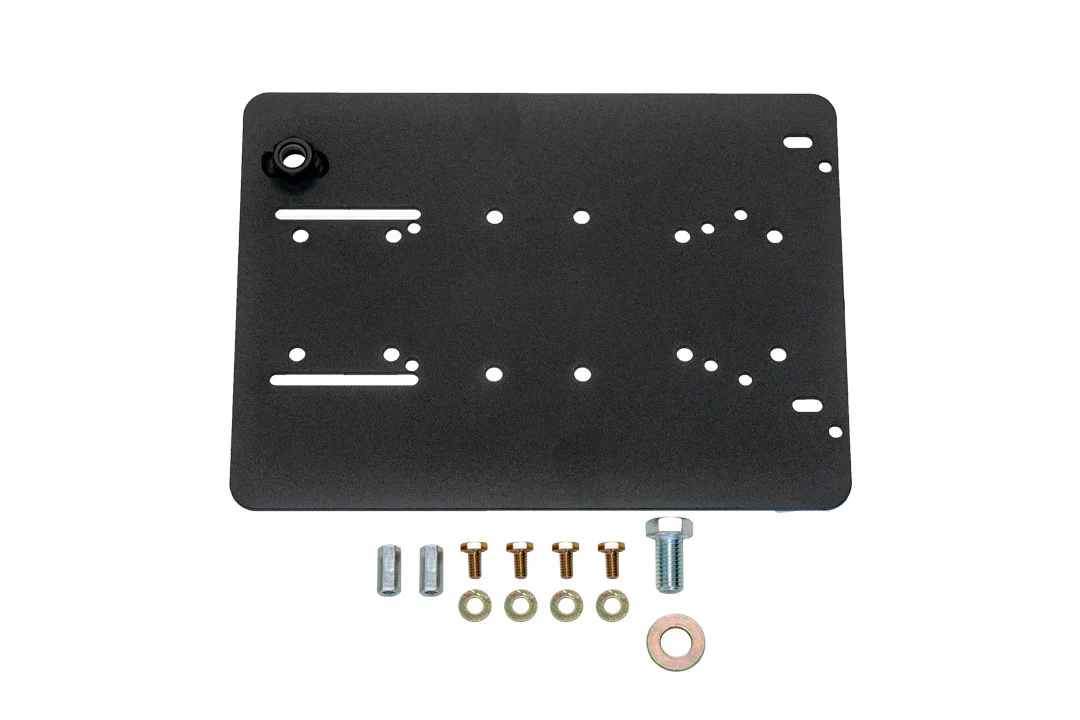

What's Included?

• Air Compressor mounting bracket

• Mounting hardware

Fitment Guide

MODEL: SPRINTER 2500 and 3500

YEAR: 2019-PRESENT

DRIVE TYPE: 4X4, AWD, 2WD

Documents: Van Compass 2019+ Mercedes Sprinter Air Compressor Mounting Bracket

Sprinter Air Compressor Mount Installation Instructions
